Connecting rod HOT RODS for KAWASAKI KDX, KX 125, 200 1989 to 2006

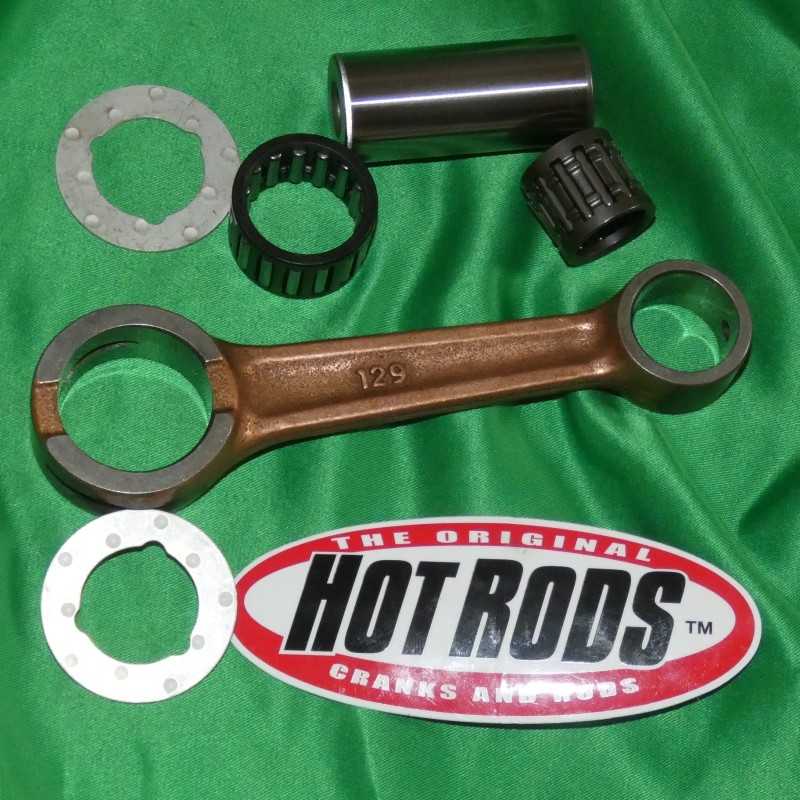

HOT RODS offers you this complete connecting rod kit for your KAWASAKI KX 125cc, KAWASAKI KDX 125cc and KAWASAKI KDX 200cc. This complete package will allow you to refurbish your crankshaft that may have some play from top to bottom. Rather than changing the complete crankshaft, you will often just have to change the connecting rod. This connecting rod is a cast model sold with its needle cage, its anti-friction shims and its crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you will need a press, a balancing bench and a little patience. If you don't have the material to do that, you can send us your crankshaft so that we can do the assembly ourselves. You can contact us first by e-mail to get a quote. All the dimensions of the connecting rod are given below.

Technical data :

Big End I.D. connecting rod: 29mm

Width of connecting rod head: 16.900mm

Center to Center Connecting Rod: 109mm

Small end connecting rod I.D.: 21mm

Connecting rod width: 16.900mm

Engine type: 2 stroke

Includes connecting rod, crank, crank bearing, wrist bearing and thrust washers

Spindle length: 51.100mm

EP washer: 1mm

Fits on :

KAWASAKI KDX 125 SR (KDX125B) 1999

KAWASAKI KDX 125 SR (KDX125B) 1998

KAWASAKI KDX 125 SR (KDX125B) 1997

KAWASAKI KDX 125 SR (KDX125B) 1996

KAWASAKI KDX 125 SR (KDX125B) 1995

KAWASAKI KDX 125 SR (KDX125B) 1994

KAWASAKI KDX 125 SR (KDX125B) 1993

KAWASAKI KDX 125 SR (KDX125B) 1992

KAWASAKI KDX 125 SR (KDX125B) 1991

KAWASAKI KDX 125 SR (KDX125B) 1990

KAWASAKI KDX 200 (KDX200C) 1988

KAWASAKI KDX 200 (KDX200E) 1994

KAWASAKI KDX 200 (KDX200E) 1993

KAWASAKI KDX 200 (KDX200E) 1992

KAWASAKI KDX 200 (KDX200E) 1991

KAWASAKI KDX 200 (KDX200E) 1990

KAWASAKI KDX 200 (KDX200E) 1989

KAWASAKI KDX 200 (KDX200H) 2006

KAWASAKI KDX 200 (KDX200H) 2005

KAWASAKI KDX 200 (KDX200H) 2004

KAWASAKI KDX 200 (KDX200H) 2003

KAWASAKI KDX 200 (KDX200H) 2002

KAWASAKI KDX 200 (KDX200H) 2001

KAWASAKI KDX 200 (KDX200H) 2000

KAWASAKI KDX 200 (KDX200H) 1999

KAWASAKI KDX 200 (KDX200H) 1998

KAWASAKI KDX 200 (KDX200H) 1997

KAWASAKI KDX 200 (KDX200H) 1996

KAWASAKI KDX 200 (KDX200H) 1995

KAWASAKI KDX 220 R (KDX220R) 2005

KAWASAKI KDX 220 R (KDX220R) 2004

KAWASAKI KDX 220 R (KDX220R) 2003

KAWASAKI KDX 220 R (KDX220R) 2002

KAWASAKI KDX 220 R (KDX220R) 2001

KAWASAKI KDX 220 R (KDX220R) 2000

KAWASAKI KDX 220 R (KDX220R) 1999

KAWASAKI KDX 220 R (KDX220R) 1998

KAWASAKI KDX 220 R (KDX220R) 1997

KAWASAKI KX 125 (KX125F) 1988

KAWASAKI KX 125 (KX125G) 1989

KAWASAKI KX 125 (KX125H) 1991

KAWASAKI KX 125 (KX125H) 1990
