Connecting rod HOT RODS for KAWASAKI KXF 450 from 2009 to 2018

HOT RODS offers you this complete connecting rod kit for your KAWASAKI KXF 450cc. This complete package will allow you to refurbish your crankshaft that may have some play from top to bottom. Rather than changing the complete crankshaft, you will often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, its anti-friction shims and its crank pin. It has the same original dimensions. No adaptation is necessary. To change a connecting rod, you will need a press, a balancing bench and a little patience. If you don't have the material to do that, you can send us your crankshaft so that we can do the assembly ourselves. You can contact us first by e-mail to get a quote. All the dimensions of the connecting rod are given below.

Technical data :

Big End I.D. connecting rod: 42mm

Width of connecting rod head: 19.970mm

Connecting rod center to center: 101mm

Small end connecting rod I.D.: 19mm

Small end rod width: 18mm

Engine type: 4 stroke

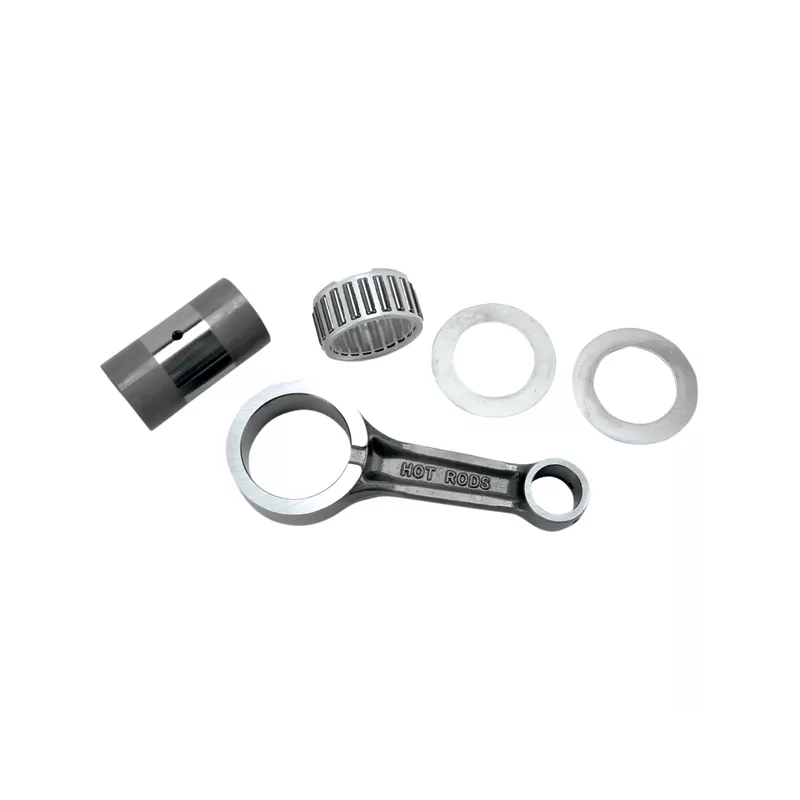

Includes connecting rod, crank, crank bearing and thrust washers

Spindle length: 62mm

EP washer: 1mm

Fits on :

KAWASAKI KX 450 F (KX450E) 2011

KAWASAKI KX 450 F (KX450E) 2010

KAWASAKI KX 450 F (KX450E) 2009

KAWASAKI KX 450 F (KX450F) 2015

KAWASAKI KX 450 F (KX450F) 2014

KAWASAKI KX 450 F (KX450F) 2013

KAWASAKI KX 450 F (KX450F) 2012

KAWASAKI KX 450 F (KX450H) 2018

KAWASAKI KX 450 F (KX450H) 2017

KAWASAKI KX 450 F (KX450H) 2016
