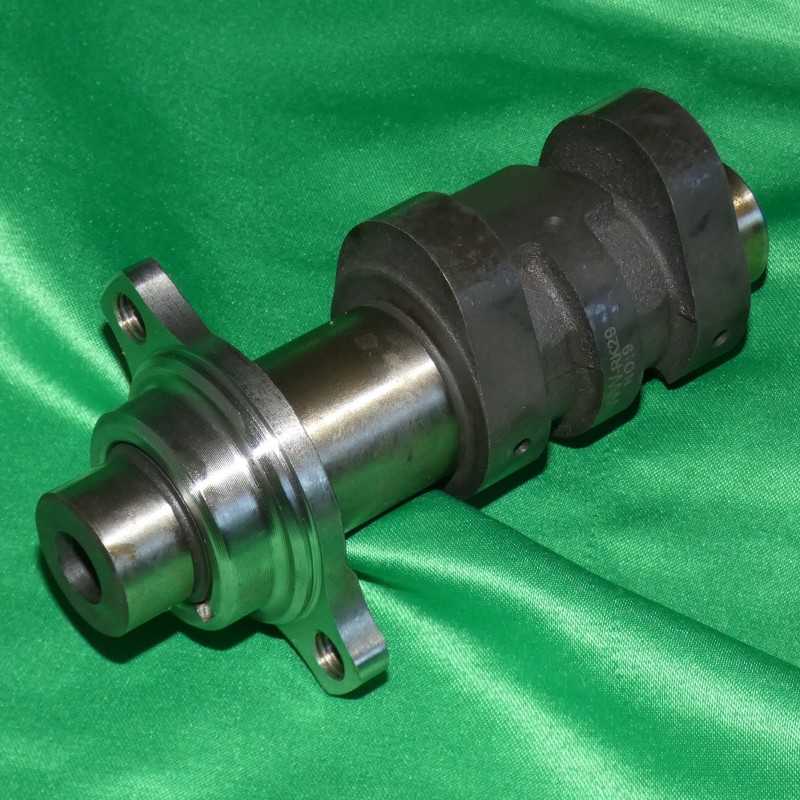

Cam shaft HOT CAMS stage 1 for HONDA XR 650 from 2000 to 2007

HOT CAMS offers you this camshaft stage 1 to equip your motocross HONDA XR 650cc. This camshaft has the same place and the same timing as the original one. However, the opening times have been changed to increase the performance of your motocross. During our dyno test we noticed that the engine had much more torque from start up and a much better mid-range pick up. It can be mounted on an original cylinder but also the BIG BORE kit like the ATHENA for example. Ideal to increase quickly and easily the performance of your motocross. Contractual photo to come

Here are the technical data of these camshafts:

Exhaust duration (degrees at 1mm): 251°

Exhaust lobe center (degrees): 105

Exhaust valve clearance (mm): 0.200mm

Exhaust cam lobe lift: 9.210mm

Lift of intake cam lobe: 9.260mm

Intake lobe center (degrees): 109.00

Intake duration (degrees at 1mm): 254°

Intake valve clearance (mm): 0.150mm

Fits on:

HONDA XR 650 R (RE01) 650 2007

HONDA XR 650 R (RE01) 650 2006

HONDA XR 650 R (RE01) 650 2005

HONDA XR 650 R (RE01) 650 2004

HONDA XR 650 R (RE01) 650 2003

HONDA XR 650 R (RE01) 650 2002

HONDA XR 650 R (RE01) 650 2001

HONDA XR 650 R (RE01) 650 2000
